Eaton Swap.....

[not a gt]

Originally Posted by TTSaleen

Thanks!
I might have screwed up yesterday! I took a friend of mine for a ride in the Mach. He was so impressed he made me a cash offer for the car. I countered with my offer (just throwing it out there) and he said he would let me know by this weekend.

LOL!

Ryan

Uh Oh lol, BTW, I love the battery cover...very clean and most important, it is NOT chrome

[Alex302]

Here is my setup. Its in my 95 Gt. Mach 1 and eaton swap

[01yellerCobra]

Originally Posted by not a gt

Uh Oh lol, BTW, I love the battery cover...very clean and most important, it is NOT chrome

Hater.

[not a gt]

Revival...will the stock Mach 1 cable work on the 03 cobra motor with eaton or do I have to buy one? Same question on cruise control??

[311-420]

Originally Posted by not a gt

Revival...will the stock Mach 1 cable work on the 03 cobra motor with eaton or do I have to buy one? Same question on cruise control??

It takes a cobra throttle cable but you can reuse the cruise control one.

And congrats on the new setup!

[ASH302]

Originally Posted by not a gt

Revival...will the stock Mach 1 cable work on the 03 cobra motor with eaton or do I have to buy one? Same question on cruise control??

I'm very happy for you buddy on your new set up and look forward to your build thread, you should go ahead and start one

ASh

[ASH302]

Originally Posted by 311-420

It takes a cobra throttle cable but you can reuse the cruise control one.

And congrats on the new setup!

Agreed

ASh

[not a gt]

Originally Posted by 311-420

It takes a cobra throttle cable but you can reuse the cruise control one.

And congrats on the new setup!

Good deal, I ordered one

[311-420]

Originally Posted by not a gt

Good deal, I ordered one

Just emailed you a few shaker to blower mount pics.

[not a gt]

Originally Posted by eatonmach1

Here are a couple of pics of mine. I have to clean my engine compartment up again but besides that I am almost done.

I keep noticing in pics the PS line coming off hydroboost on TOP going to wherever, is this a new line or did you just move it?

http://www.mach1registry.org/forums/...6&d=1238991092

[not a gt]

Originally Posted by wutang61

could someone get be the wiring diagram for the machs alternator and the 2003 cobras alternator? i need the one that shows the connection wire itself to the alternator. as you know the 03 alt has a different connector on it and i need the diagram to splice in the 03 pigtail.


thanks!

OLD thread, but I can't find where this was answered and need this info as well

[311-420]

Originally Posted by not a gt

OLD thread, but I can't find where this was answered and need this info as well

Post #16 isn't it? http://www.mach1registry.org/forums/...aton+swap+part

[fastlane]

Originally Posted by not a gt

I keep noticing in pics the PS line coming off hydroboost on TOP going to wherever, is this a new line or did you just move it?

http://www.mach1registry.org/forums/...6&d=1238991092

That is the Cobra specific p/s line. The Mach line is a bit different. I found a complete Cobra power steering setup when I did my swap and it cleaned things up a bit.

[not a gt]

Originally Posted by 311-420

Post #16 isn't it? http://www.mach1registry.org/forums/...aton+swap+part

You are the MAN Never thought to look for a Eaton swap part 2 !!!

[ASH302]

Originally Posted by not a gt

You are the MAN Never thought to look for a Eaton swap part 2 !!!

guessing you got it all filled out

ASh

[cpearson1342]

How difficult/ costly do you guys think it will be to get a lower supercharger pulley assembley (2R3Z-6312-BA). I see it says about $400 on here, and I saw one for about $245 on ebay. Think it's worth it at that price or I should try to get it cheaper?

[ASH302]

Originally Posted by cpearson1342

How difficult/ costly do you guys think it will be to get a lower supercharger pulley assembley (2R3Z-6312-BA). I see it says about $400 on here, and I saw one for about $245 on ebay. Think it's worth it at that price or I should try to get it cheaper?

I'm searching for you, but some I found was a extra A on the end of the part number, is this it?
http://www.gaudinautoparts.com/oe-fo...EsABoC4gzw_wcB

ASh

[ASH302]

Originally Posted by cpearson1342

How difficult/ costly do you guys think it will be to get a lower supercharger pulley assembley (2R3Z-6312-BA). I see it says about $400 on here, and I saw one for about $245 on ebay. Think it's worth it at that price or I should try to get it cheaper?

http://www.oepartsstore.com/a/Ford_2...-/jc99305.html

Try this link too and see what price you come up with

ASh

[311-420]

Originally Posted by cpearson1342

How difficult/ costly do you guys think it will be to get a lower supercharger pulley assembley (2R3Z-6312-BA). I see it says about $400 on here, and I saw one for about $245 on ebay. Think it's worth it at that price or I should try to get it cheaper?

If you're talking about the lower caged pulley that drives the blower/alternator belt then get the best one you can find. The one that came in my eaton swap was garbage. Had to shell out another $320 for one with less than 500mi on it. It's one of the 4 most expensive pieces in the eaton swap. The other three being the intercooler, lower intake and the blower itself.

[ASH302]

Originally Posted by 311-420

If you're talking about the lower caged pulley that drives the blower/alternator belt then get the best one you can find. The one that came in my eaton swap was garbage. Had to shell out another $320 for one with less than 500mi on it. It's one of the 4 most expensive pieces in the eaton swap. The other three being the intercooler, lower intake and the blower itself.

is this something or what your talking about?
http://www.americanmuscle.com/metco-...blue&GID=49707



ASh

[Captain Obvious]

ASH302, the kit you've linked to is Metco's solution to a lower crankshaft support pulley alternative to the stock component that Ford came up with. It's definitely a nice kit, but it doesn't have the cage support the stock pulley does, which puts strain on the crankshaft snout. Crankshaft snouts have been known to break off with the use of Metco's kit, but usual cases of this sort concern engines with aftermarket belt tensioners and *big* boost. So you have to be careful with Metco's kit, as it eliminates the cage support.

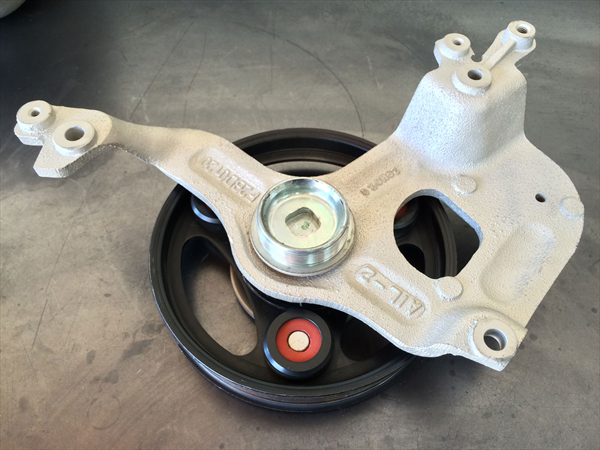

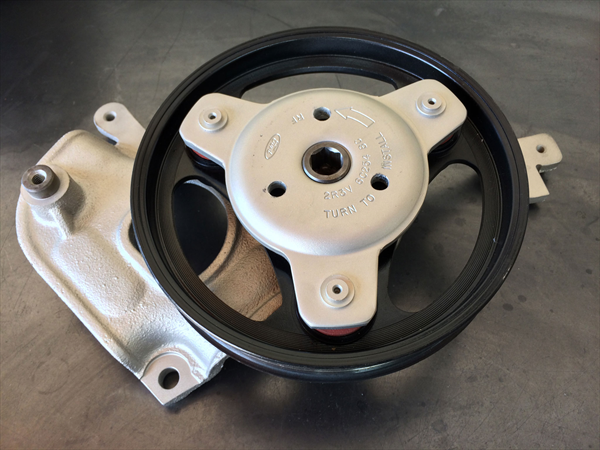

Here's a few pictures of a rebuilt stock component, which 311-420 is referring to:

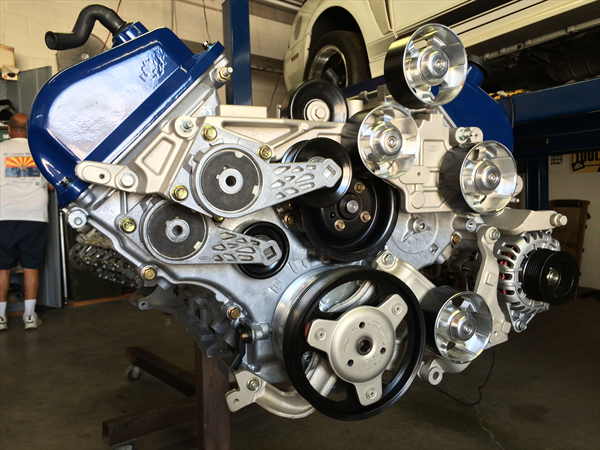

Here's a picture of it installed:



Unfortunately this component is long-discontinued from Ford, including the bushings, which definitely take a beating.

[01yellerCobra]

You don't need a special dampner to run the Metco set up. It's designed to bolt up to the stock dampner. There are other set ups for aftermarket dampners such as the ones Innovators West make.

Personally I'm keeping the stock caged set up. My buddy has the Metco set up and while he's been ok with his ported eaton, he's had belt alignment issues since installing it. We're going to have to have the hub machined to line things up correctly.

[Captain Obvious]

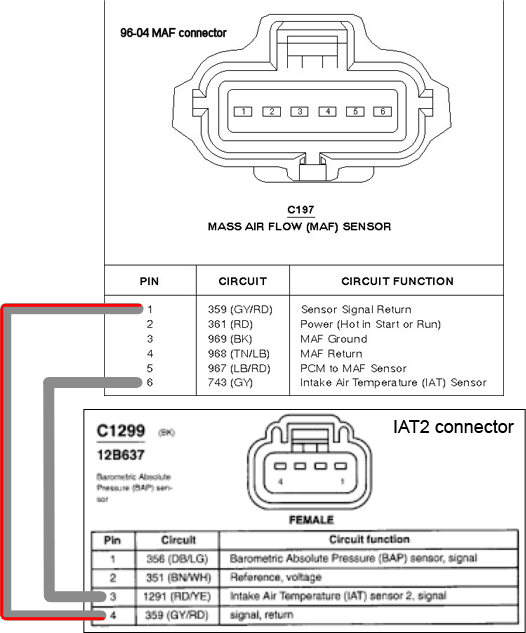

I'm deep into the process of Eaton swapping my 2003 Mach1 following a catastrophic engine failure, and I would like to confirm my IAT2 wiring plans. Hopefully the following diagram properly conveys my understanding of what needs to happen:



Aye?

[Captain Obvious]

Originally Posted by 01yellerCobra

You don't need a special dampner to run the Metco set up. It's designed to bolt up to the stock dampner. There are other set ups for aftermarket dampners such as the ones Innovators West make.

Thanks for correcting me, 01yellerCobra. I edited my post so as to save face and prevent misinformation from circulating.

[01yellerCobra]

Originally Posted by Captain Obvious

Thanks for correcting me, 01yellerCobra. I edited my post so as to save face and prevent misinformation from circulating.

No worries. That's why we're all here. I'm really not a fan of the Metco set up. There's a guy making a 4lb caged lower on SVTP. I thought about grabbing one of those, but I don't think I'll need it for my future plans.
